Professional Riders

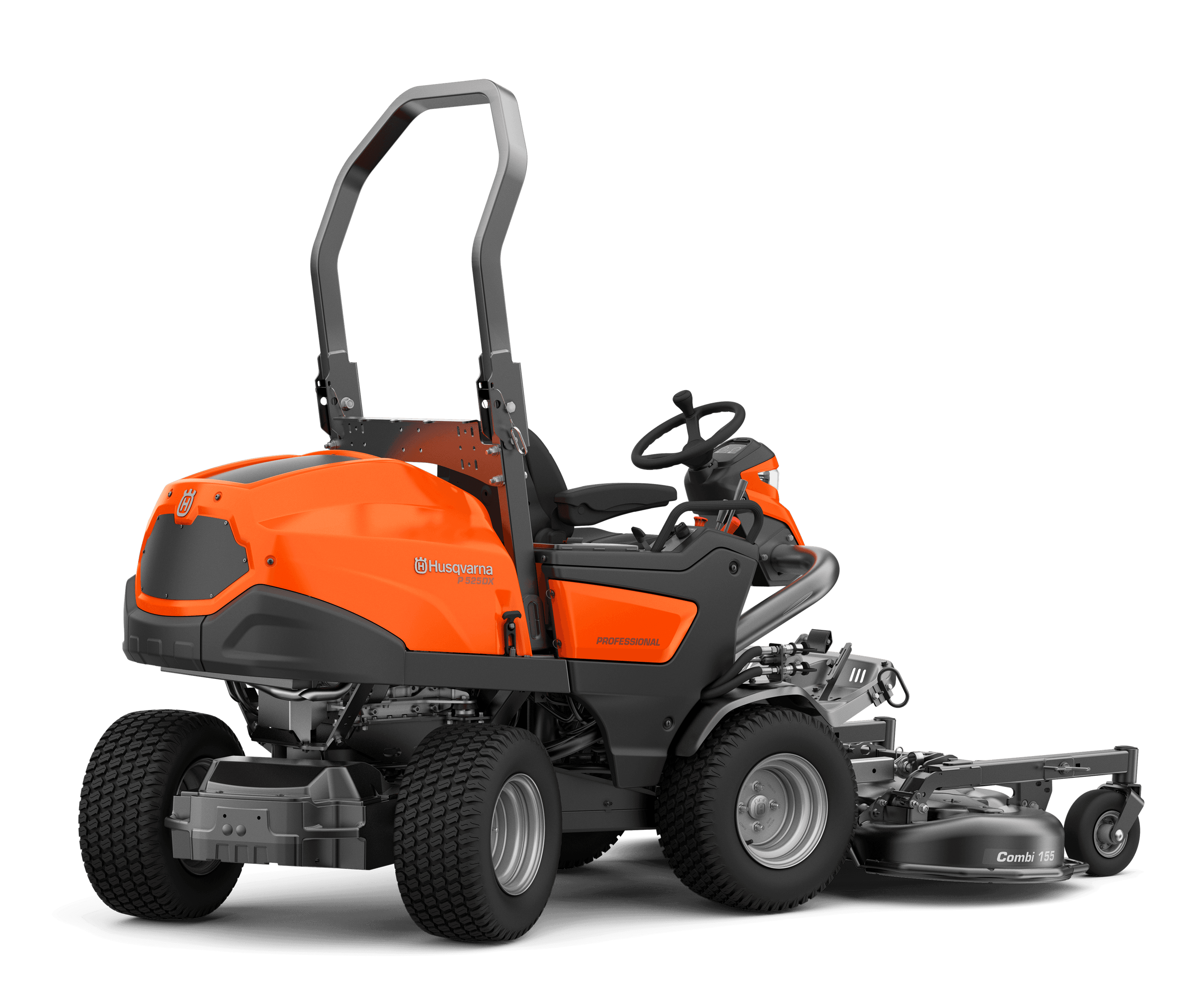

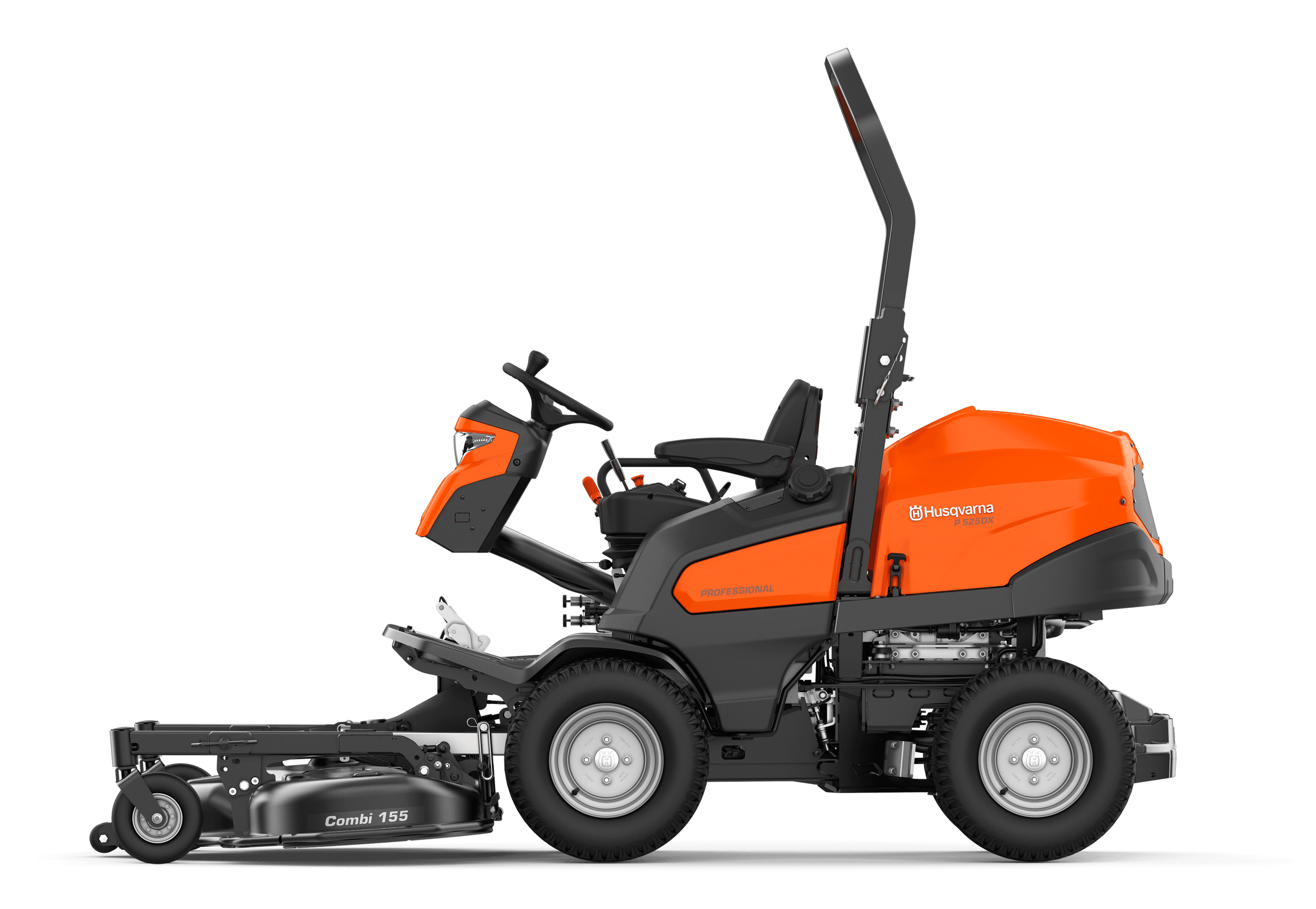

P 525DX

Loading...Rec. retail price incl. GST SKU: 967985301
  • Power/fuel typeDiesel
  • Cutting width, min132 cm

Product description

High-capacity diesel-powered front mower offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas. The commercial graded transmission gives uncompromised traction and slope stability. The machine's compact size and high transport speed makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Long-life components for solid durability and less downtime. Attachments such as utility bucket and broom give increased productivity all-year round. The P525DX can be fitted with either a 132 or 155 cm Combi cutting deck. Snow thrower, folding plough & snow blade attachments not available in AU/NZ markets. *Price excludes deck. Decks supplied at additional cost.

5-year warrantyFinance options

Product Information

Features (24)

Our patented articulated steering increases driving pleasure by improving manoeuvrability. image

Patented articulated steering

Min. clearance circle by articulated steering

High performance 3-cylinder Kubota diesel engine with full pressure lubrication. Combines exceptional power and torque with fuel efficiency and reduced emissions. image

Kubota diesel engine

3-cylinder Kubota diesel engine with full pressure lubrication.

The model has a built-in connectivity module which easily can be connected with Husqvarna Fleet Services™. Allowing you to see the single product as well as your entire fleet of connected product’s last known location, its usage stats and service history – and much more. This also facilitates updates of the product’s firmware, so that it's always compatible with the latest functions in Husqvarna Fleet Services™. image

Integrated connectivity

The model has a built-in connectivity module which easily can be connected with Husqvarna Fleet Services™.

The low profile front-mounted cutting deck gives unbeatable accessibility under fences, bushes, park benches etc. image

Mowing accessibility

Unbeatable mowing accessibility

The front-mounted cutting deck gives an excellent overview of the working area, enabling precise, close-up trimming. image

Trimming ability

Front-mounted cutting deck for precise trimming

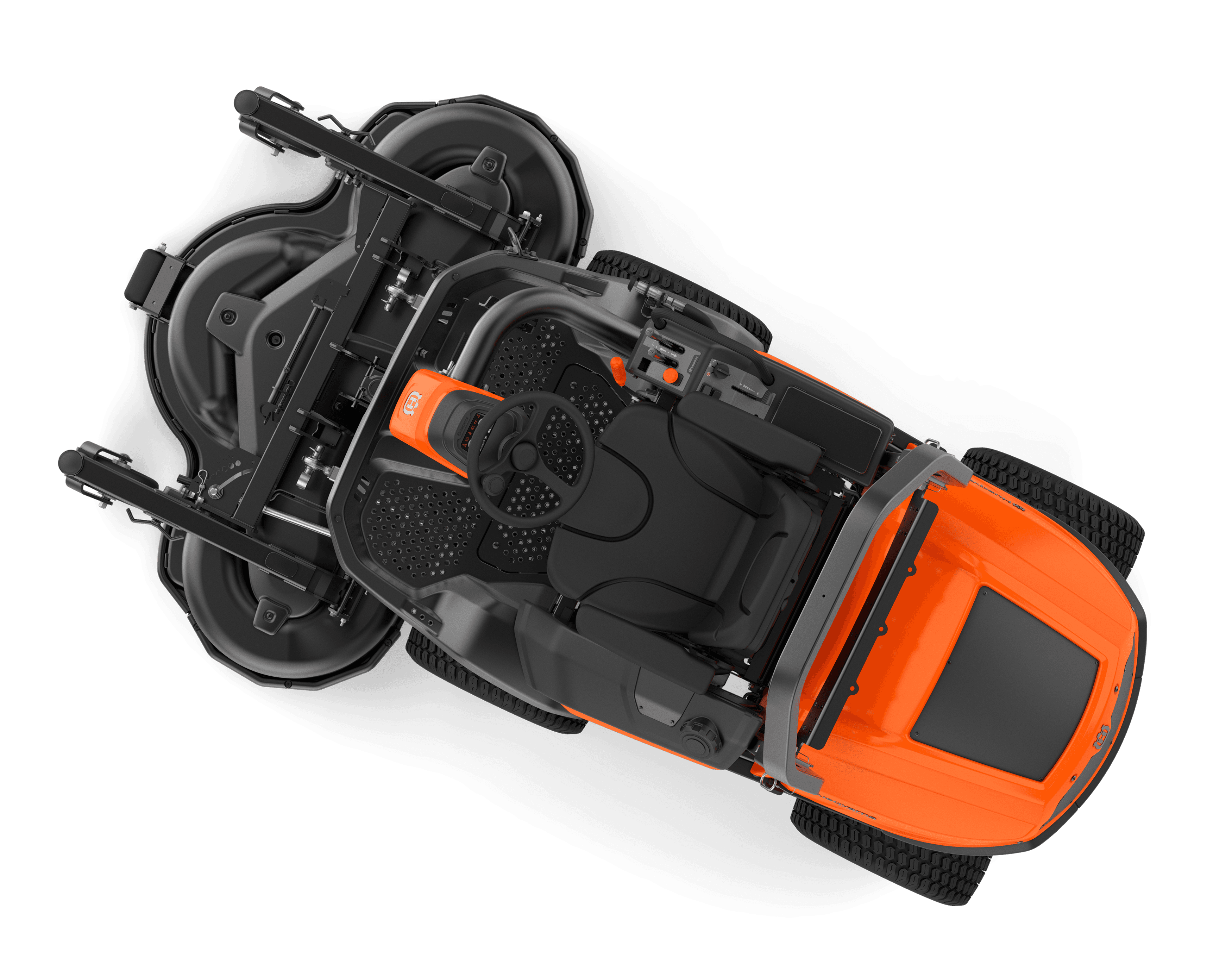

The compact size together with the unique articulated steering makes it easy to manoeuvre the machine in narrow spaces and tricky areas. image

Compact design

Compact design for easy operation in narrow spaces

The machine’s low centre of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability. image

All-Wheel Drive (AWD)

Excellent hillside driving performance

A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round. image

Versatile usage

Accessories for versatile year/round usage

Optional cabin not available in AU/NZ markets. image

Cabin

Optional cabin

Solid and hardened PTO axle for maximum efficiency and durability. image

Shaft PTO

Shaft PTO for maximum efficiency

Unique quick coupling allows attachments to be changed quickly and efficently without tools. image

Quick coupling

Easy tool exchange by unique quick coupling

Ergonomic operator’s interface for a comfortable ride during long working hours. image

Ergonomic operation

Ergonomic operator's interface

Heavy-duty hydraulic-cylinder power steering makes driving less strenuous. image

Hydraulic power steering

Hydraulic power steering for increased comfort

Controls are easy accessible and designed for optimum user comfort. image

Easy-access controls

Easy-access controls for user comfort

The tilting hood and easily accessible servicing points makes maintenance and servicing easy. image

Tilting hood

Tilting hood makes maintenance quick and easy

For easy maintenance and longer lifetime. image

Greasable mandrels

Greasable mandrels for easy maintenance

For easy handling of corners and close-up trimming against walls and fences. image

Off-set cutting deck

Off-set cutting deck for easy close-up trimming

Service postion on the cutting deck facilitates cleaning and service. image

Service position

Service position for easy deck maintenance.

Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability. image

Durable ladder frame

Heavy-duty, durable steel ladder frame

For improved durability the complete rear wagon is one piece of ductile cast iron. image

Cast iron rear wagon

Durable cast iron rear wagon

The cutting deck is stamped from one single sheet of 4.5 mm (7 gauge) steel. image

Heavy-duty deck design

Heavy-duty deck design

16 inch wheels both front and back for optimal riding comfort and accessibility. image

16 inch wheels

Equally sized wheels for a comfortable ride

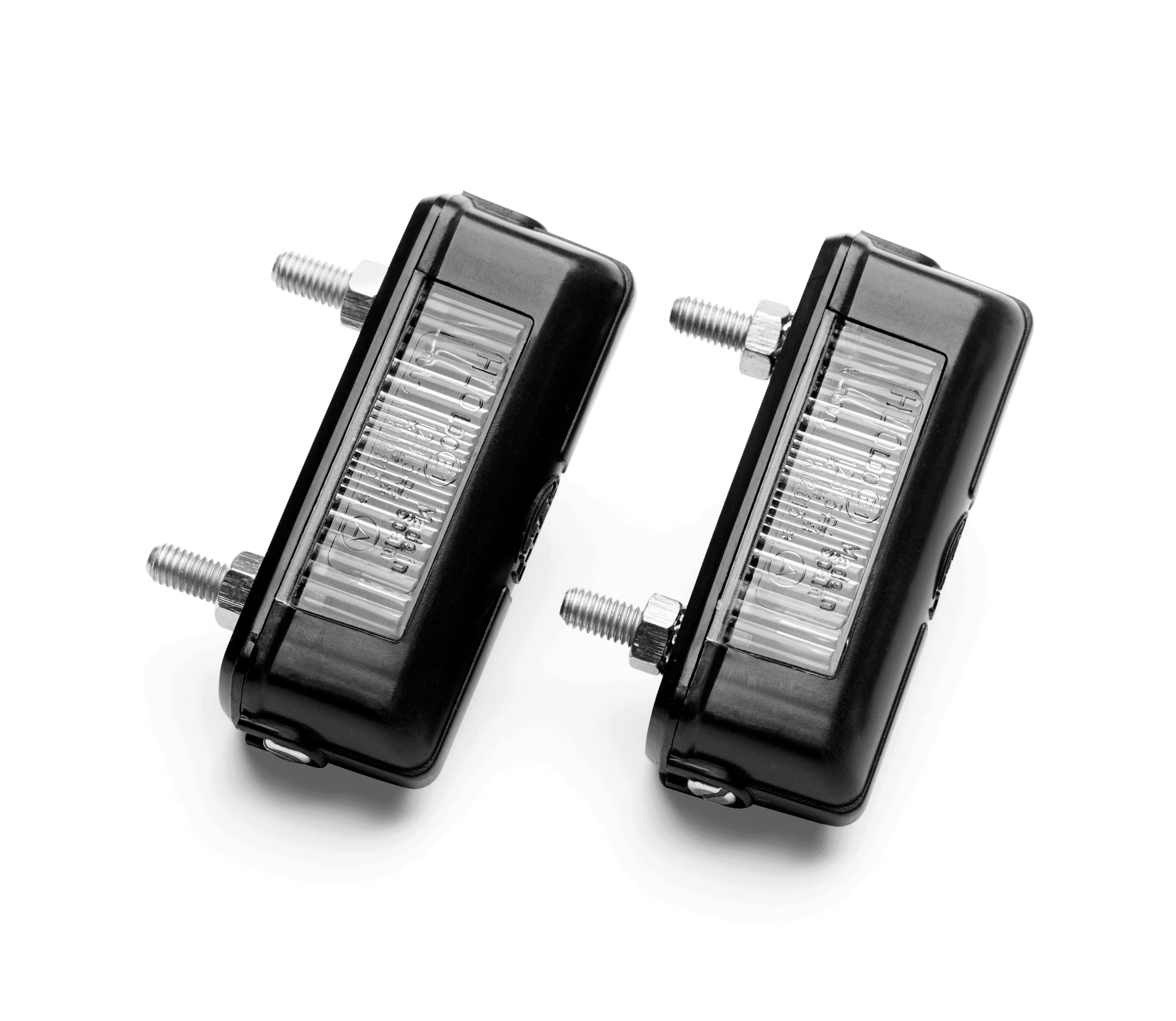

Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote. image

Dual LED lights

Dual LED lights for enlarged lighted area and safer operation in darker conditions.

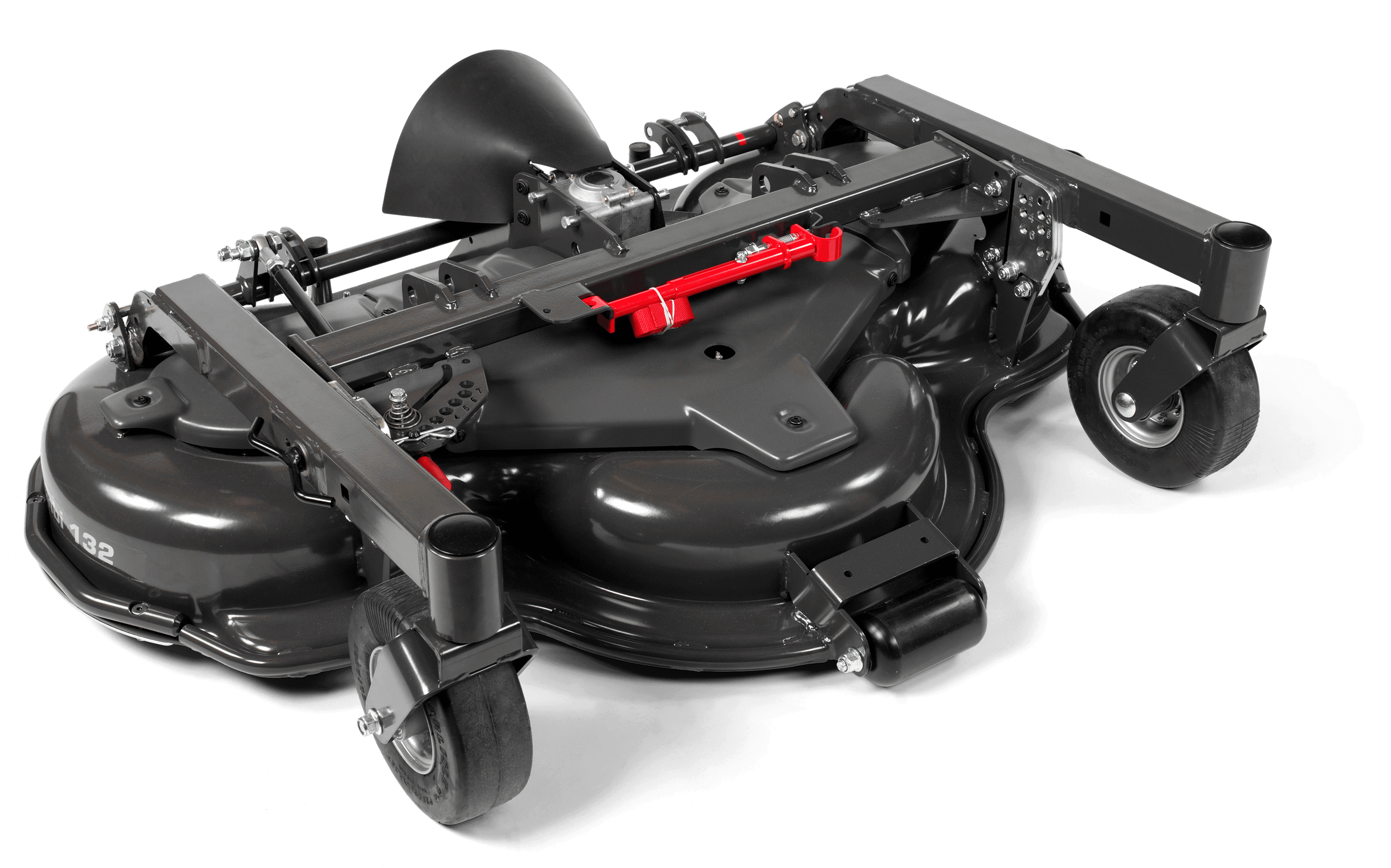

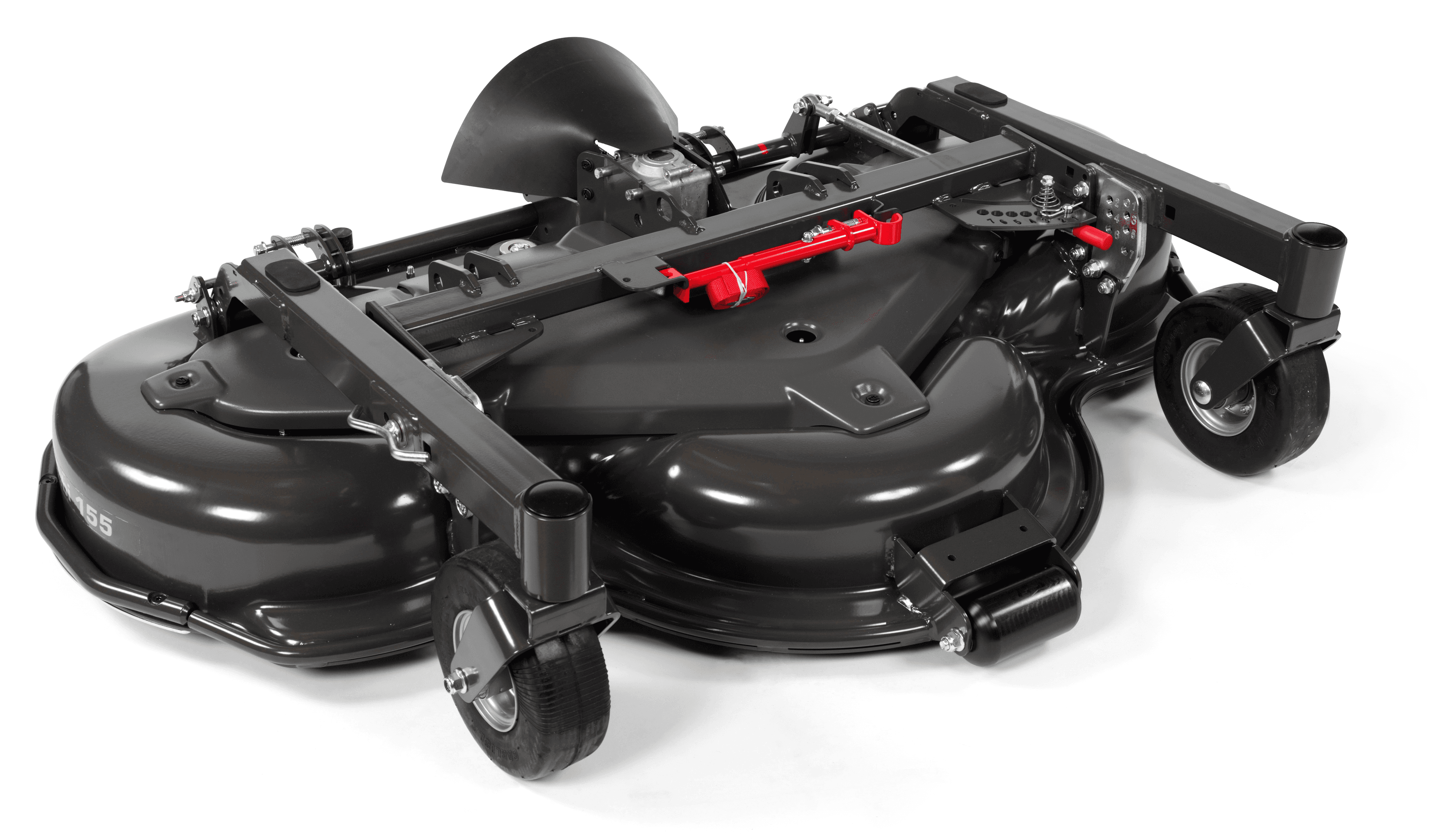

Prepared for the high-performing and unique Combi deck. Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed). Stamped from a single piece of steel plate in a flow-optimized design to deliver best in class mulch result. image

Ready for Combi deck

Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed).

Specifications

Art No: 967985301
Output shaft power17.8 kW
Weight (excl. cutting equipment)684 kg
Cylinder displacement1123 cm³
Weight (complete product w/o side packed articles)677 kg
Fuel tank volume23 l
Base machine, height133 cm
Base machine, length207.8 cm
Base machine, width115.3 cm
Battery capacity62 Ah
Battery pack weight14 kg
Battery voltage12 V
Cutting height max112 mm
Cutting height min30 mm
Cutting width, max155 cm
Cutting width, min132 cm
Fuel consumption270 g/kWh
Fuel tank volume6.1 gal (US)
Gross weight towed350 kg
Ground clearance140 mm
Net power at preset rpm3000 rpm
Net power at preset rpm Energy17.8 kW
Speed forward max19 km/h
Speed reverse max15 km/h
Uncut circle58 cm
Wheelbase106 cm
